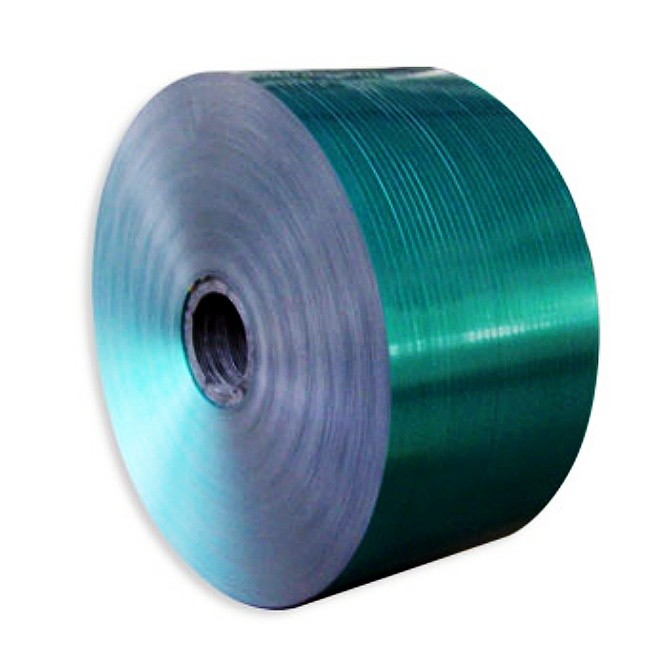

COPOLYMER COATED STEEL TAPE( ECCS)
1.Plastic clad metal consists of a chrome plated steel tape coated on one side or both sides with an adherent ethylene co-polymer. The co-polymer exhibits excellent adhesion to the steel substrate,and bonds to LLDPE,MDPE and HEPE.
2.The steel is chrome-coated, tempered to T2 condition
3. Appearance: Straight, smooth, even, free from inclusions, creases, spots.
4.Technical data sheet
ITEM | UNIT | INDEX | TOLERANCE | |
Length | m | 1000-5000 | +/-50 | |
Width | m | 12-800 | +/-0.5 | |
Thickness | steel | mm | 0.105,0.125,0.145 | +/-0.010 |
Co-polymer | mm | 0.045, 0.05 | +/-0.010 | |
Chromium on Steel | G/M2 | 0.08-0.34 | ||
Tensile Strength | MPA | 310-390 | ||
Elongation at Break | % | ≥20 | ||
Peel Strength between Steel and Plastic Coating | N/cm | ≥6.13 | ||
Heat Seal Strength | N/cm | ≥17.5 | ||
WaterResistance68+/-1℃,168h Peel Strength | N/cm | ≥6.13 | ||
Filler/Floodant Resistance 68+/-1℃,168h | SP | --- | No Delamination | |
WT-103 | --- | No Delamination | ||
Dielectric Strength DC 2KV,1min | --- | No breaking | ||
Corrosion Resistance | grade | 8 | ||
