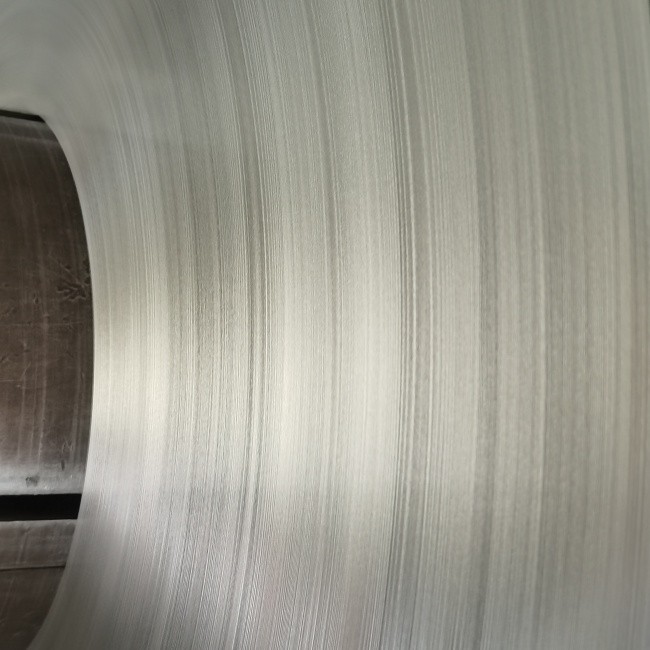

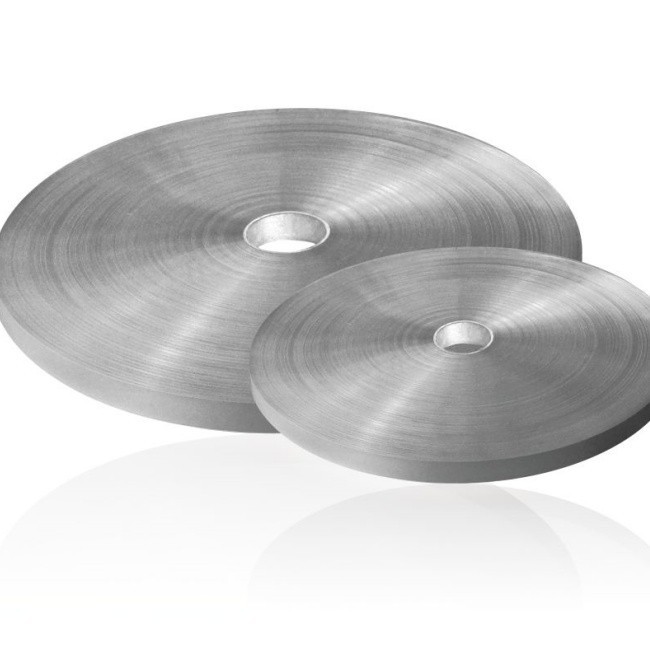

COPOLYMER COATED STAINLESS STEEL TAPE
1、It is mainly applied in OPGW power cables and other cable products.
2、Type：J4/201
3、Appearance：Straight,Even,Free from burrs,inclusions, moisture,dust, pinholes,creases, cuts,tear or adhesion
ITEM | UNIT | INDEX | TOLERANCE | |
Length | m | 1000-3000 | +/-50 | |
Width | mm | 12-1100 | +/-0.5 | |
Thickness | Stainless steel | mm | 0.125 | +/-10% |
Side A of Coat | mm | 0.050 | +/-10% | |
Side B of Coat | mm | 0.050 | +/-10% | |
Total thickness | mm | 0.225 | +/-10% | |
Hardness Testing | % | ≤210 | ||
Tensile Strength | MPA | 500---750 | ||
Elongation at Break | % | ≥30 | ||
Peel Strength between Steel and Plastic Coating | N/cm | ≥3.0 | ||
Heat Cut Strength | -- | Breakage | ||
Heat Seal Strength | N/cm | ≥17.5 | ||
