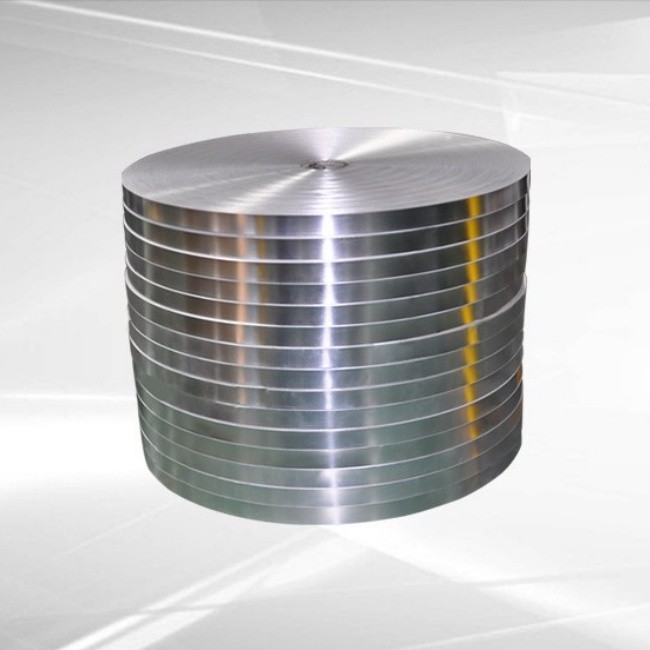

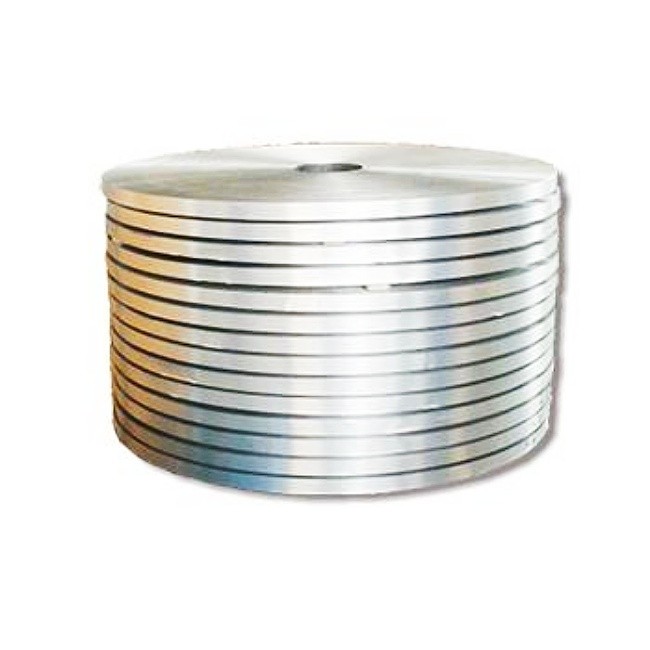

1.Co-polymer coated aluminum tape applies for shielding and moisture barrier for copper pair cables. It consists of an aluminum tape coated on one side or both sides with an adherent ethylene co-polymer with clear or blue color. The co-polymer provides excellent adhesion to the aluminium substrate and has the chemical resistance and general characteristics of low-density polyethylene and gives excellent bond strength to all types of polyethylene. Aluminum alloys available 1050, 1060, 1200, 1145, 8011 according to customized requirements.
Technical data sheet
ITEM | UNIT | INDEX | TOLERANCE | ||
Length | m | 1000-4100 | +/-50 | ||
Width | mm | 12-1050 | +/-0.5 | ||
Thickness | AL | mm | 0.150 0.185,0.20 | +/-0.010 | |
Co-polymer(EAA) | mm | 0.050 | +/-0.013 | ||
Tensile Strength | MPA | 70-120 | |||
Elongation at Break | % | ≥15 | |||
Peel Strength between Al and Plastic Coating | N/cm | ≥6.13 | |||
Heat Seal Strength | N/cm | ≥17.5 | |||
Water Resistance68+/-1℃,168h Peel Strength | N/cm | ≥6.13 | |||
Filler/Floodant Resistance 68+/-1℃,168h | SP | --- | No Delamination | ||
WT-103 | --- | No Delamination | |||
Dielectric Strength DC 2KV,1min | --- | No breaking | |||
Corrosion Resistance 0.1mol/L, Hcl,480h | Grade | 7 |
